VFSA195,VFSA200,VFSA220,VFSA240

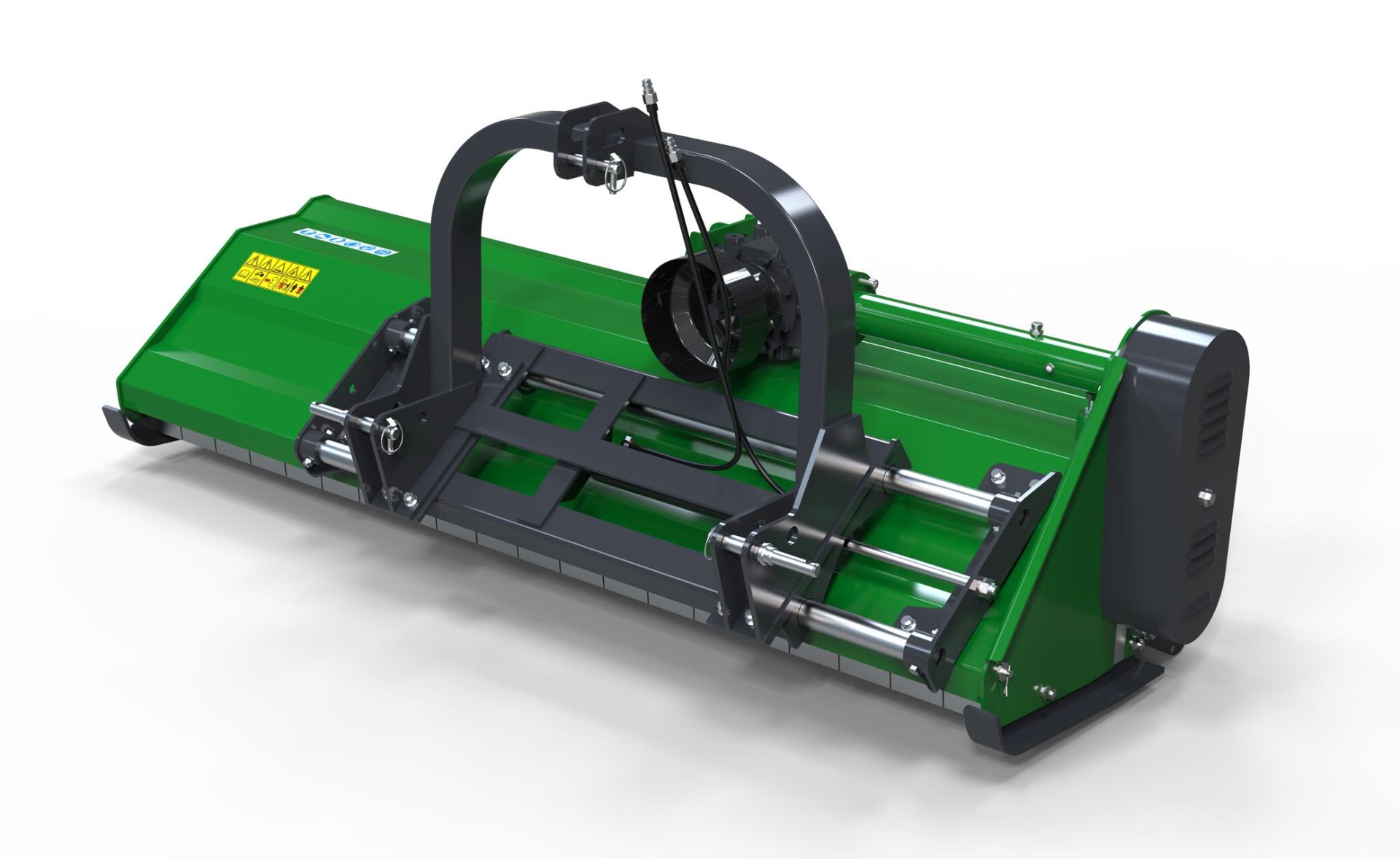

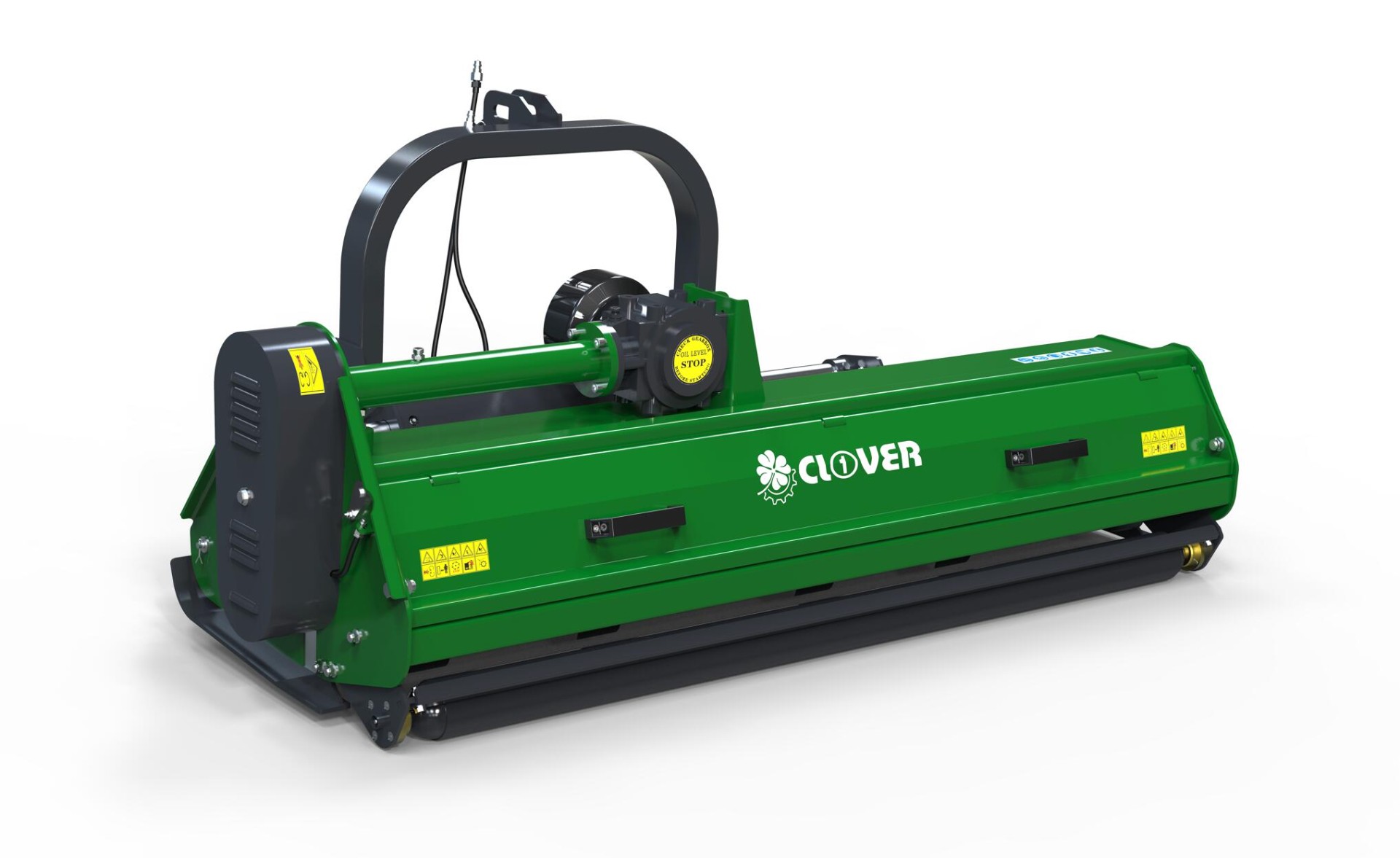

Rear mounted shredder, for tractors from 45 to 70 HP. It is suited to mulch grass, bushes up to Ø 4-5cm on parks, green areas, sport courts etc,it has a strong suspension structure, a good balance axle shaft, equipped with self-aligning bearing in both end of the axle. The open rear cover design facilitates the maintenance of the axle shaft and the replacement of the blades.
Optional items : hydraulic side shift with hoses and quick couplings; Y blades
Mulchers model VFSA has been designed to be fitted on Middle powers tractors (35-55hp).
This model is used to shred corn, straw, pruning waste, crops in general, weeds. garden, park etc. and it is easily for maintace, changing hammers. steel structure, rotor balanced electronically and fitted on self-centring and perfectly pro-tected bearings, belt trasmission driven by an oillubrificated bevel gear with freewheel en-closed in cast-iron.
Possibility to fit Y blades or hammer de-pending on the working requi-rements.

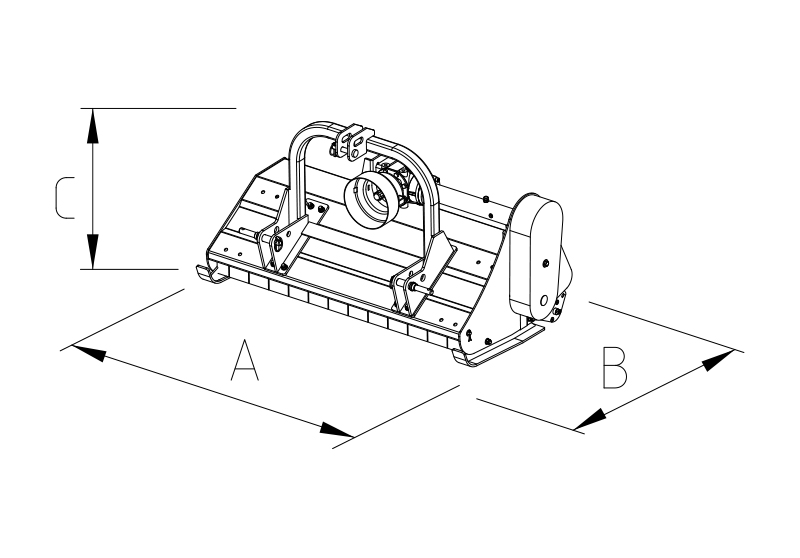

Mod. | A | B | C | |||||||||
CM | Min. | Max. | CM | n° | n° | n° | RPM | CM | CM | CM | KGS | |
VFSA180 | 180 | 40 | 60 | 72 107 | 24 | 48 | 4 | 540 | 196 | 78 | 92 | 345 |
VFSA190 | 190 | 40 | 60 | 72 117 | 26 | 52 | 4 | 540 | 206 | 78 | 92 | 358 |
VFSA200 | 200 | 40 | 70 | 72 127 | 26 | 52 | 4 | 540 | 216 | 78 | 92 | 370 |
VFSA220 | 220 | 40 | 70 | 72 147 | 28 | 56 | 4 | 540 | 236 | 78 | 92 | 395 |
VFSA240 | 240 | 40 | 70 | 72 167 | 32 | 64 | 4 | 540 | 256 | 78 | 92 | 420 |
