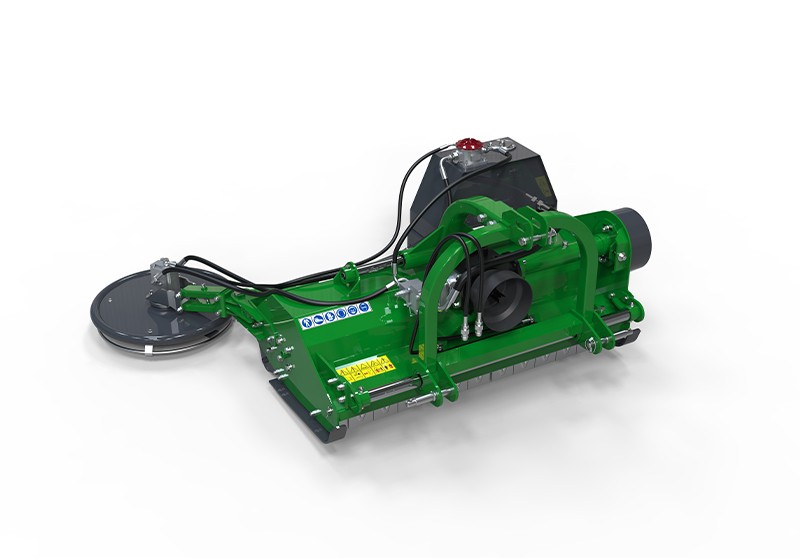

VFLU Grass mower of variable width, suited to work on vineyards and orchards for tractors from 30 to 120 HP. With self hydraulic system for disc head cutting.
VFLU Grass mower of variable width, suited to work on vineyards and orchards for tractors from 30 to 120 HP. With self hydraulic system for disc head cutting.
These models can be used on all small green and agriculture areas for cutting grass, crop residues or mulching prunnings form orchards and vineyards. Its construction is rigid, de-signed for in tensive use, ap-propriate for small tractors.

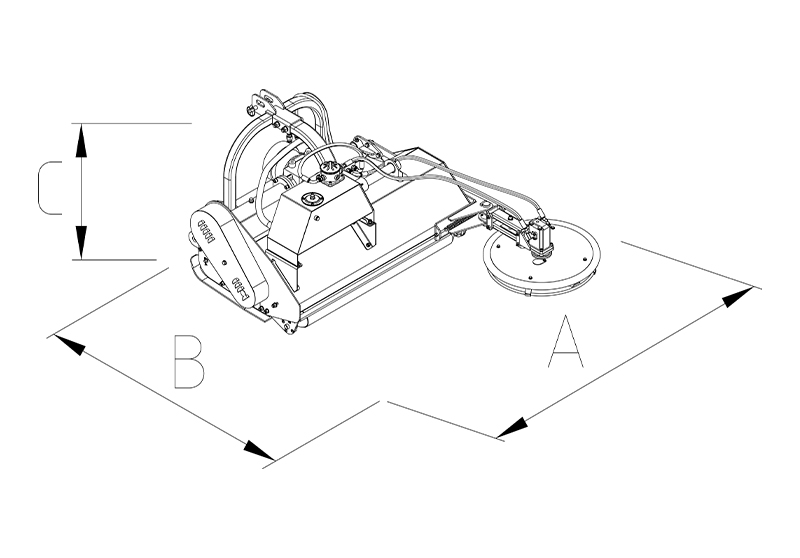

Mod. |  |  |  |  |  |  |  | A | B | C |  | Rated flow | Motor displacement | Oil tank | Disc blade | |
CM | Min. | Max. | CM | n° | n° | n° | RPM | CM | CM | CM | KGS | L/min | ml/r | L | n° | |
VFLU/P125 | 125 | 25 | 55 | 45 80 | 18 | 36 | 3 | 540 | 137 | 50 | 165 | 322 | 50 | 16 | 18 | 2 |
VFLU/P135 | 135 | 30 | 55 | 45 90 | 20 | 40 | 3 | 540 | 147 | 50 | 165 | 332 | 50 | 16 | 18 | 2 |
VFLU/P145 | 145 | 30 | 55 | 45 100 | 20 | 40 | 3 | 540 | 157 | 50 | 165 | 342 | 50 | 16 | 18 | 2 |
VFLU/P155 | 155 | 30 | 55 | 45 110 | 22 | 44 | 3 | 540 | 167 | 50 | 165 | 352 | 50 | 16 | 18 | 2 |
VFLU/P165 | 165 | 30 | 55 | 45 120 | 24 | 48 | 3 | 540 | 177 | 50 | 165 | 362 | 50 | 16 | 18 | 2 |
VFLU/P175 | 175 | 30 | 55 | 45 130 | 26 | 52 | 3 | 540 | 187 | 50 | 165 | 372 | 50 | 16 | 18 | 2 |
Options: Disc mower with spring and cylinder | ||||||||||||||||
