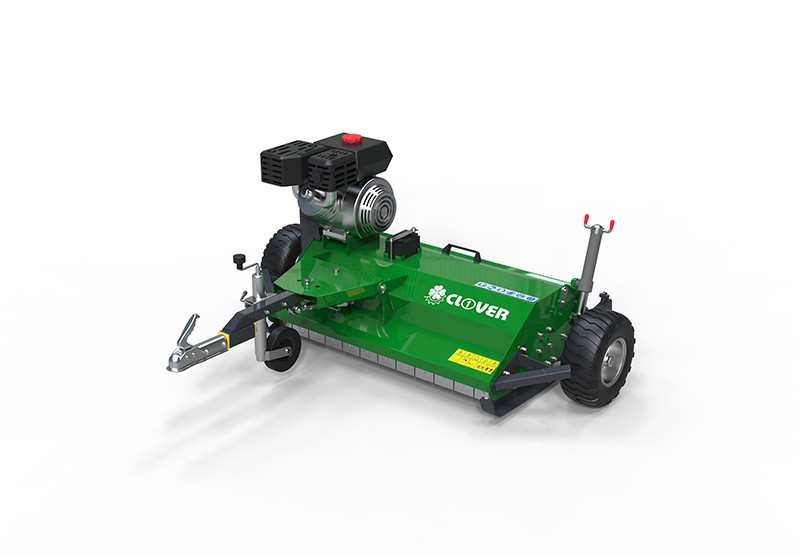

The ATV mower units offer you great flexibility. Thanks to the installed petrol engine, with an impressive 15 HP performance, you canstay independent with this mowing unit, irrespective as to whether you are using the mulching lawnmower with a quad 1ATV, a mowingtractor, a narrow-gauge tractor or even towing using a personal vehicle.

The mowing unit is connected to the towing vehicle with a simple ball head coupling.

The cutting height can be simply adjusted using the threaded spindle below the drawbar. For the transport position the screw jack can be used. The four-stroke petrol engine drives the mowing unit via 2 V-belts.

A heavy trailing roller has been installed towards the rear of the mulcher. The engine can be simply started using an electric starter; the12 volt battery comes as part of the delivery. Alternatively the engine can be started using a recoil cord.

The 28 installed paddle flails cut the clippings to the minimum size. Even very high grass, bushy or straw-like clippings are no problem for this mower! Thanks to the large, stable pneumatic tyres, the mower can also be moved on very uneven surfaces without difficulty.

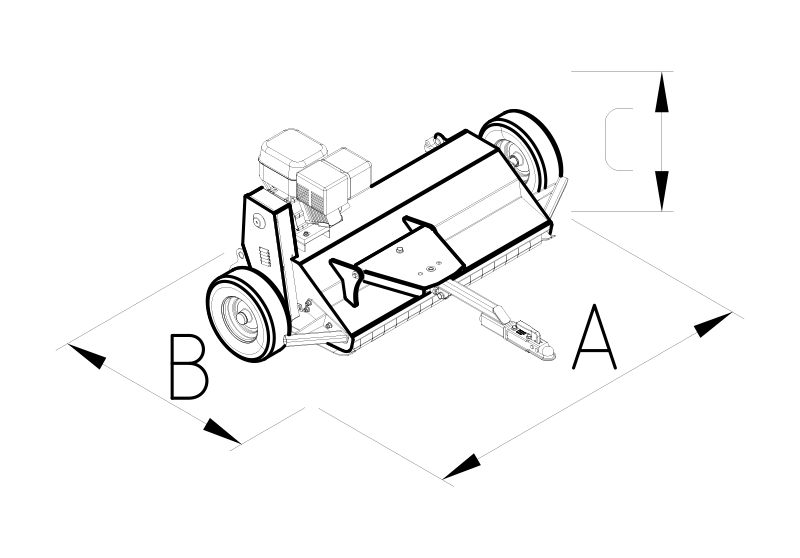

Mod.					A	B	C
	HP	n°	n°	n°	cm	cm	cm	Kg
AT120A	15	28	56	2	175	168	98	230
AT150A	18	32	34	3	205	168	98	310
