1JS Mulcher with hydraulic "pick-up" rotor suited for mulching wooden material such as pruning and branches up to Ø 8 cm., ideal for vineyards with uneven and stony terrains. For tractors from 80 to 140 HP.
1JS Mulcher with hydraulic "pick-up" rotor suited for mulching wooden material such as pruning and branches up to Ø 8 cm., ideal for vineyards with uneven and stony terrains. For tractors from 80 to 140 HP.
Standard equipment: fixed 3-points linkage, Cat. I-II, double free wheel in the gearbox, pick-up rotor with hydraulic transmission through self-lubricating chain with speed-adjusting valve, double chassis, rear discharge through a grid of wear-proof steel, counter-blades, full automatic belts adjuster, front wheels, height adjustable, adjustable rear roller Ø 159, with scraper, forged and hardened hammers, frontal conveying guards, PTO 1000 rpm.

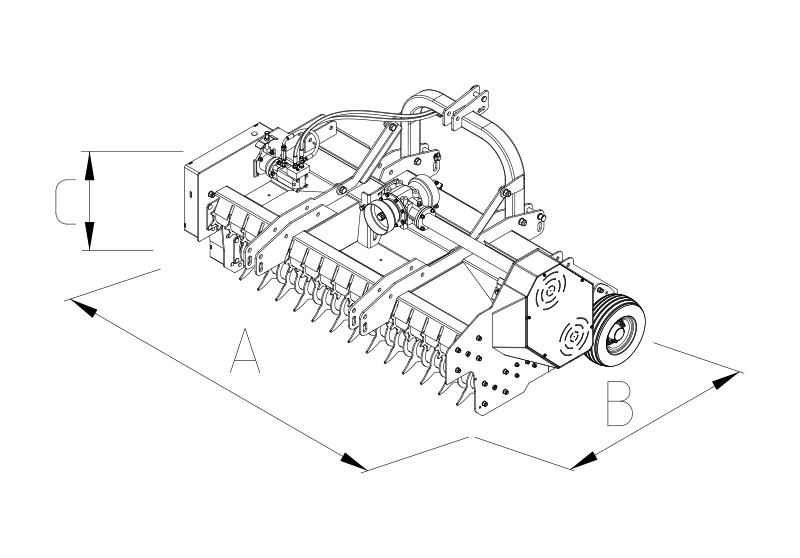

Mod. |  |  |  |  |  | A | B | C |  | OIL FLOW OF MOTOR | |
CM | Min. | Max. | n° | n° | RPM | CM | CM | CM | KGS | L / MINS | |
1JS180 | 180 | 130 | 180 | 20 | 6 | 540 / 1000 | 224 | 170 | 140 | 1550 | 75 |
1JS200 | 200 | 150 | 200 | 24 | 6 | 540 / 1000 | 244 | 170 | 140 | 1650 | 75 |
1JS210 | 210 | 150 | 200 | 26 | 6 | 540 / 1000 | 254 | 170 | 140 | 1700 | 75 |
1JS240 | 240 | 180 | 240 | 30 | 6 | 540 / 1000 | 284 | 170 | 140 | 1850 | 75 |
1JS250 | 250 | 180 | 240 | 32 | 6 | 540 / 1000 | 294 | 170 | 140 | 1900 | 75 |
